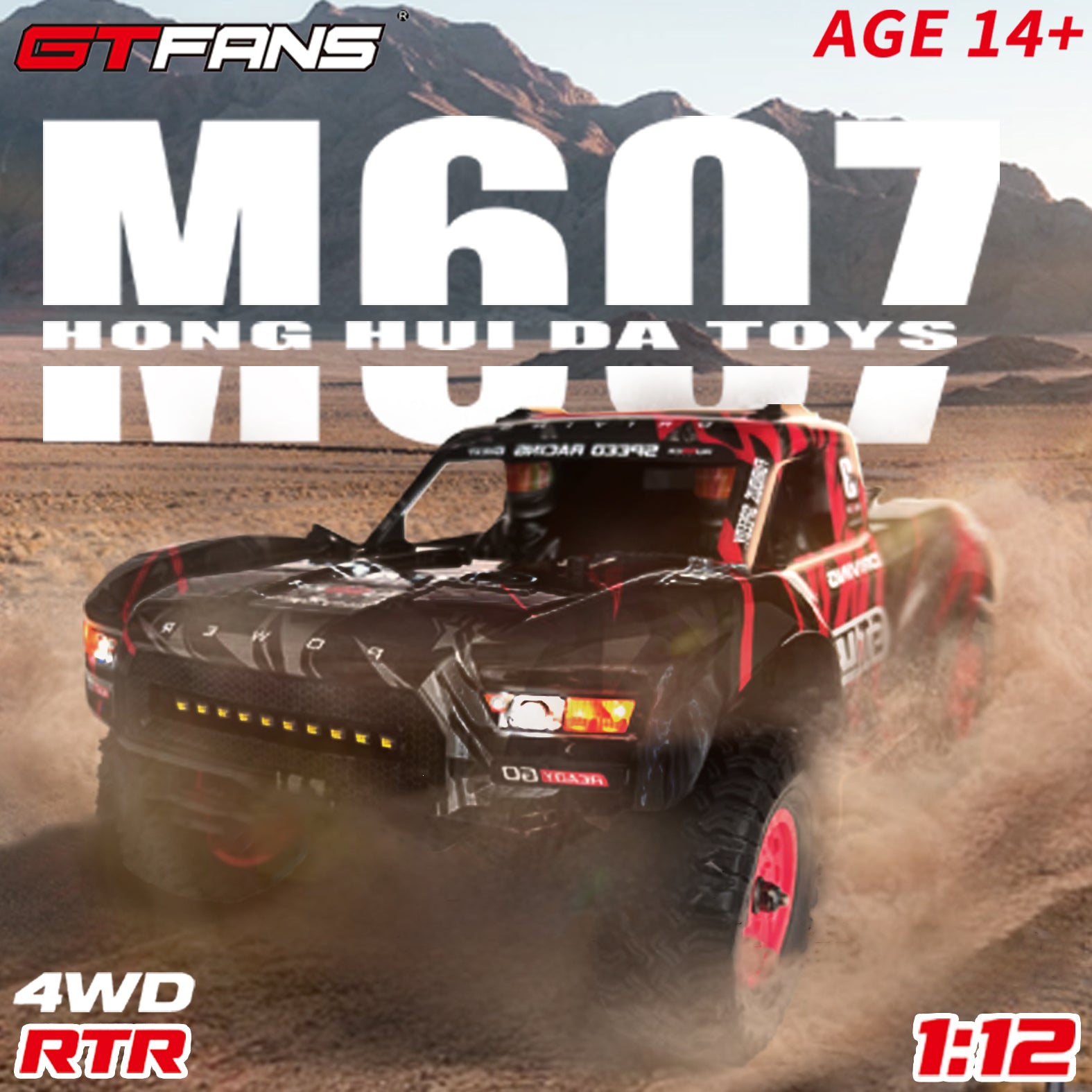

GTFANS M607 1/12 RC Truck
Overview: GTFANS M607 1/12 short course truck, 4WD drive, carbon fiber/aluminum alloy chassis, 50–70km/h high speed, equipped with sensorless brushless power system and aluminum alloy oil shocks, includes battery, remote control, and complete tool set.
I. Basic Information
-
Brand/Model: GTFANS / M607 - Short Truck
- Scale: 1/12
- Tire Size: Diameter 86mm * Width 35mm
- Body Shell: PC 0.5mm
- Body Shell Buckle: Anti - loss rope R - type buckle
- Battery Compartment: 117mm * 37mm × 26mm
- Speed: (2S 7.4V 50Km) (3S 11.1V 70Km)
- Size: Product width: 215mm; Wheelbase: 254mm
- Drive Mode: 4WD
- Transmission Mode: Central Limited - Slip Transmission
- Ground Clearance: 40mm
- Body Weight: 1.37KG
II. Power & Control System
- ESC: Hobbywing Sensorless Brushless 45A ESC, supports 2 - 3S lithium batteries
- Motor: SwrpassHobby 2845 - 3800KV Brushless Motor
- Motor Heat Sink: Yes
- Battery: XT60 - 2S 2200mah25C Polymer Lithium Battery
- Servo: JX 25G Three - wire Servo, Torque 3.35KG
- Remote Control: Flysky G4P Remote Control (Remote Control Distance 350 Meters)
- Charger: Q3 Balance Charger (38W)
III. Functions & Features
- Lights: With ED Front Light Group
- Suspension System:
-
- Shock Absorber Frame: 6.5mm thick nylon
- Car Chassis: 2mm thick carbon fiber / 2mm thick aluminum alloy, anodized black
- Steering Mechanism Rubber Parts: PA6 + 30 fiber
- Front and Rear Differentials: Powder metallurgy gears, alloy steel cups, nylon shells
- Front Shock Absorbers: Adjustable screw CNC aluminum alloy hydraulic shock absorbers, 17.5mm * 72.6mm, Length (hole distance) 72.6mm, Length after compression (hole distance) 54.1mm
- Rear Shock Absorbers: 17.5mm * 83.1mm, Length (hole distance) 83.1mm, Length after compression (hole distance) 59.1mm, pre - installed with 2000# shock absorber oil, spring wire diameter 1.0mm, spring diameter 17mm, spring length 51mm
- Motor Mount: CNC aluminum alloy, anodized red
- Rear Dog Bones, Differential Cups, Drive Gear Cups, Steering Column Axes, Universal Drive Shafts (Steering CVDs), Steering Tie Rods, Rear Rotating Shafts, Longitudinal Drive Shafts, Upper Pull Rods: Alloy steel black nickel plated
- Gears (Transmission Part):
-
- Motor Gear: 0.8M 11T (Powder Metallurgy Iron - based Gear)
- Central Reduction Gear: 0.8M - 40T (High Wear - Resistant Nylon)
- Differential Driven Gear: 34T (Powder Metallurgy Iron - based Gear)
- Differential Drive Gear: 18T (Powder Metallurgy Iron - based Gear)
IV. Package Included
- M607 - RTR version × 1
- Instruction manual × 1
- Body shell sticker × 1, Body shell sticker instruction manual × 1, Remote control instruction manual × 1, ESC instruction manual × 1
- Wheel removal tool × 1
- Peak head open small wrench × 1
- 1.5mm hexagon screwdriver × 1, 2mm hexagon screwdriver × 1
- Battery × 1, Q3 charging box × 1
- Remote control × 1
