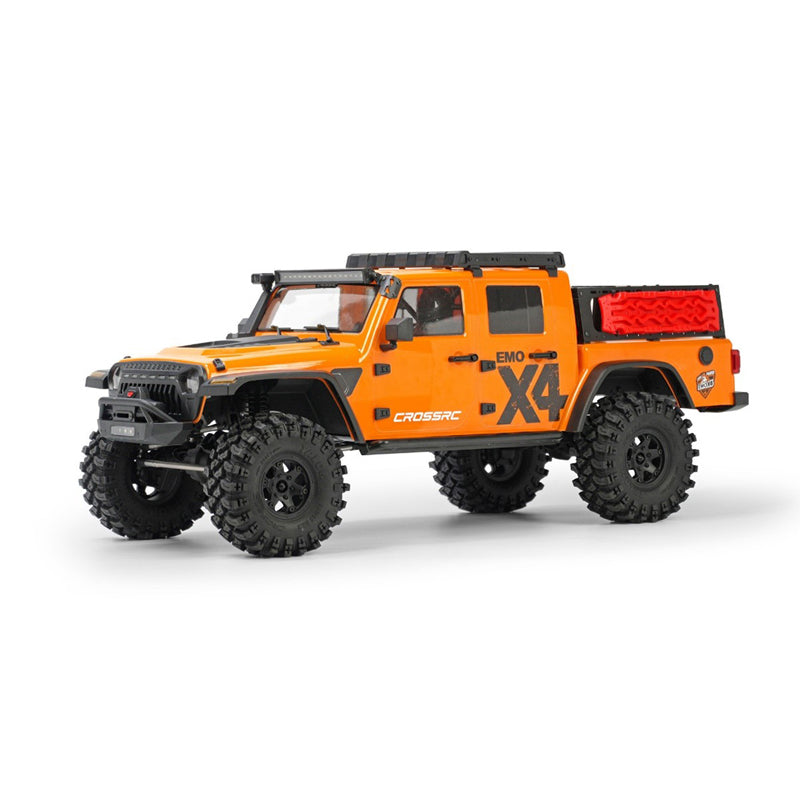

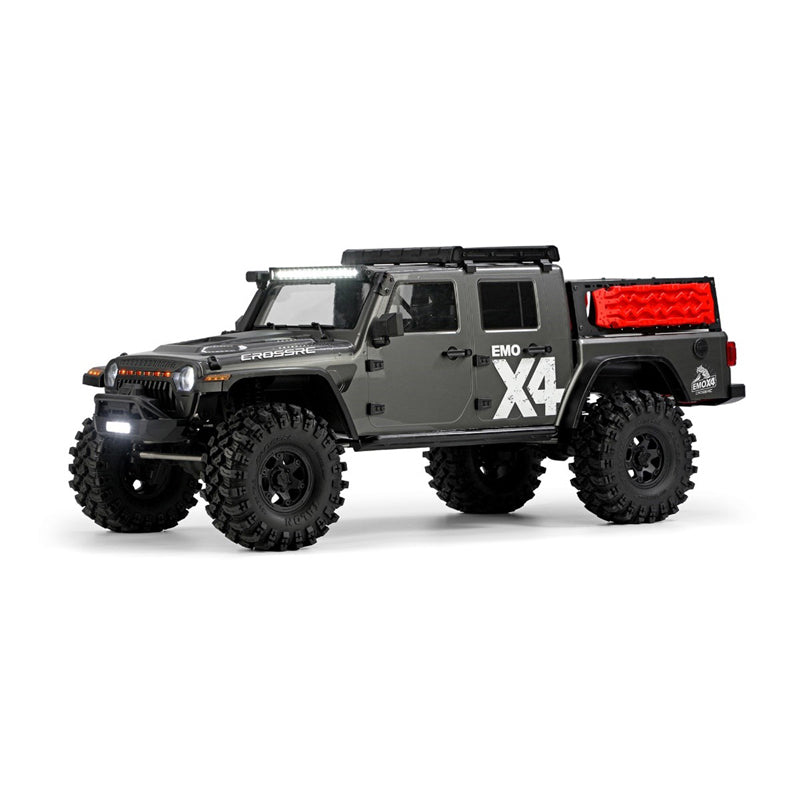

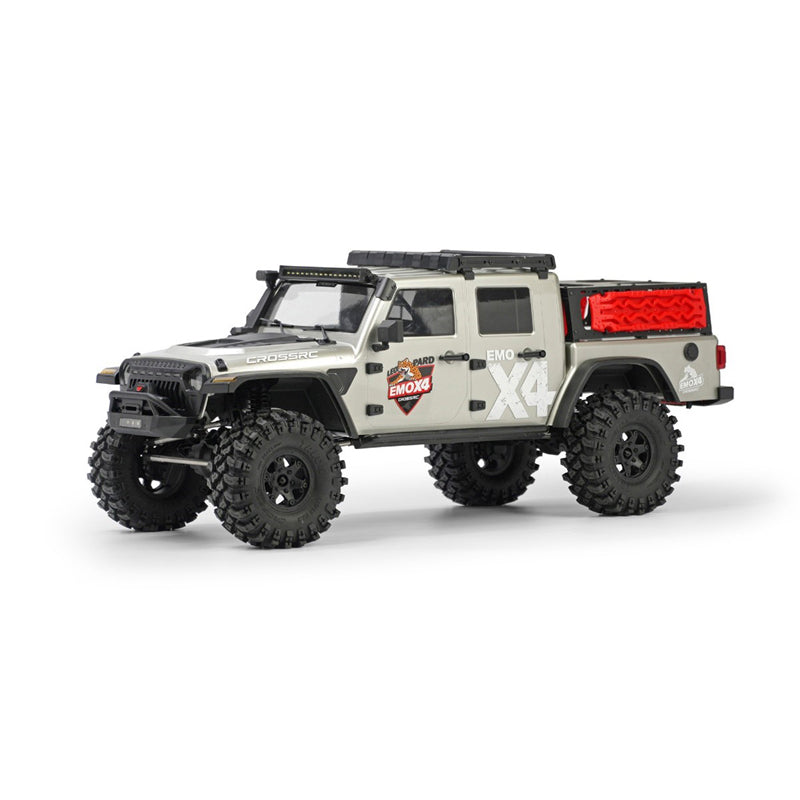

Crossrc EMO X4 1/8 4WD Big Leopard RC Car

I. Basic information

• Brand/Model: Crossrc EMO X4
• Scale: 1/8
• Dimension: 712x301x286mm
• Battery compartment: 160X60X40mm

II. Appearance and Basic Design

• Shape and Style：It adopts a hardcore off - road pickup truck style, with a specially developed long - wheelbase climbing chassis. The cab and the rear cargo area are designed in a split - body style referring to real vehicles, with externally - mounted nylon split - body fender flares. It is equipped with a cross - country - style roof rack kit ex - factory, having a practical cross - country modification style right from the factory.
• Body Structure：The front and rear shells are installed independently. The front shell has a hidden quick - release lock catch, and is equipped with a simulated interior and a driver figure. The rear shell is fixed at the rear, and there is no need to remove it when replacing the battery and power system. The roof rack is equipped with simulated recovery boards, a spare fuel tank, and a small backpack speaker with dual sound effects. The overall vehicle size is 712x301x286mm, and the wheelbase is 436mm.

III. Performance Configuration

• Power Transmission：The 436mm ultra - long wheelbase adopts a metal intermediate drive shaft to ensure efficient and stable power output. It is equipped with dual - speed and front - and - rear independent differential locks. With a front - biased center - of - gravity layout for climbing performance, the battery compartment capacity has been increased to 160X60X40mm, which can be adapted to batteries with higher voltage or larger capacity.
• Suspension and Shock Absorption：The 20mm large - diameter CNC shock absorbers provide sufficient support and a flexible posture. The suspension adopts a reinforced ball - joint tie - rod set, making the chassis more reliable and impact - resistant when dealing with high - intensity actions such as slope - charging and landing. It is standard - equipped with the rear balance link pioneered by Crossrc in the remote - control vehicle model field, which provides more stable handling during high - speed driving and reduces the risk of rollovers.
• Transmission Components：The robust inlaid portal axle structure provides sufficient torsional resistance for the high - power system and ensures structural safety. It uses a combination of PM - process high - strength alloy gears, precision - cut gears, and high - strength mixed - fiber nylon large gears, which are wear - resistant and quiet. The bearings reach the high - quality ABEC3 grade, with high weather resistance, extending the maintenance cycle.
• Tires and Wheels：The 2.2 - inch lightweight nylon bead - lock wheels are paired with TALON MT tires, which are made of professional synthetic materials, featuring high traction, durability, and puncture - resistance.

IV. 2025 new car power configuration in three versions

• No power ARTR frame version, factory installed front and rear differential and shift servo, players need to provide their own: steering servo, ESC, motor, battery and remote control equipment.
• 775 brushed RTR version, power supporting 25T high-power 775 DC brushed motor + Goodwin 880 high-voltage ESC, its torque and temperature resistance increased by multiples.
• HaoYing 8IGHT FOC brushless RTR version, with HaoYing customized 8IGHTFOC 1:8 special brushless power system 1800KV core, maximum support for 4S LiPo input, fast can be majestic, slow is calm and delicate.

V. Lighting and Sound of Crossrc EMO X4 RC Car

• Lighting System：Ex - factory, it is equipped with a full - vehicle linked lighting group and two sets of high - power cross - country spotlights, meeting the needs of night - time mountain climbing and providing a clear view.
• Sound Configuration：It is standard - equipped with a small backpack speaker designed by Crossrc, with personalized dual sound effects, enhancing the fun of playing with the vehicle.

VI. Package list

• 1x RC Car (Charger and Battery not included.)
• 1x Remote Control
• 1x User Manual
