Crossrc EMO XX 1/6 Off-road RC Car

CROSSRC EMO XX 1:6 Large - Scale RC Crawler Vehicle

The EMO XX large - scale remote - controlled crawler vehicle redefines the limits of "large - scale crawling". With a length of over 80 cm and a weight of 13 kg, it has powerful off - road performance and a flexible posture.

I. Basic information

• Brand/Model: CROSSRC EMO XX
• Scale: 1/6

II. Product Highlights

1. Chassis and Frame

• The reinforced chassis adopts a simulated girder formed by stamping thick steel plates with a hundred - ton press. The axles, cross - beams, and connecting parts are made of imported nylon materials with a special - adjusted formula, taking into account both strength and toughness.
• The reverse - transmission front and rear portal axle structure has a maximum Ackermann angle of 5 degrees for steering, a kingpin inclination of 8 degrees, and a maximum caster angle of 8 degrees, resulting in good steering return traceability and stable and easy - to - control handling.
• With an upward - angled input shaft, etc., the transmission is smooth. The half - shaft and the output shaft at the door side are made of strengthened steel, with diameters of 6 mm and 8 mm respectively, and are equipped with a 17 - mm coupler, which has strong impact resistance.

2. Suspension and Shock Absorption

• Suspension: The front three - link + lateral thrust rod and rear four - link + balance rod structure, with a link diameter of 10 mm, makes the suspension flexible in twisting and has strong lateral impact resistance. The upper fulcrum of the front lateral thrust rod has a steel - reinforced module.
• Shock Absorbers: 26 - mm large - diameter shock absorbers, precisely processed from high - quality aluminum alloy by CNC. With adjustable pre - load and a maximum stroke of 40 mm, they provide good support for the vehicle and can easily show a flexible posture. The ball joints use large - size ball head buttons made of special materials and precision steel ball head beads, combining rigidity and flexibility for flexible shock resistance.

3. Power System

• Power Configuration:

  The brushed RTR version is equipped with two customized 775 high - power motors in parallel, powered by dual high - voltage 880 ESCs.

  The front - mounted extra - large battery compartment can accommodate two 8000mah 3S batteries (dimensions 160mm85mm55mm).

  The initial release models include the dual 775RTR version (ready - to - play upon power - up) and the ARTR version without electrical equipment (with the frame pre - assembled). The brushless version will be launched soon.

• Gearbox: The large - torque two - speed gearbox has all - metal gears. The heavy - load end is an integral steel - cut gear to ensure strength, and the transmission end is a self - lubricating alloy gear, which reduces wear between gears and extends the service life.

4. Control and Protection

• Servo Configuration: The vehicle is equipped with 5 - class high - voltage servos, including 170KG high - power steering servo + 325KG standard servos.
• Power Supply and Protection:

  The 70KG high - power steering servo is powered by an independent ESC BEC to avoid the impact of electrical load on vehicle control and the operation of the flashing linkage light group.

  It has a servo stall protection function, automatically reducing the current output when stalled for a long time to protect the servo from burning out. The full - range of function servos is adjustable without manual adjustment.

  The front and rear differential locks and gearbox shifting control, pioneered by CROSSRC, adopt full - stroke servo control to protect the servo from burning out due to incorrect working stroke.

5. Tires and Wheels

• Equipped with newly - developed ROCK BREAKER "Roar of Rock Breaking" MT tires and MARSH RANGER "Marsh Roaming" MT tires.
• The former has multi - edged vertical tire claws with strong rock - gripping ability, and the latter has a herringbone texture suitable for muddy road conditions.
• The original vehicle uses nylon clamping - type wheels, and the tires are clamped by screws and nuts to prevent de - bonding.

6. Body Structure

• The body shell is made of thickened PC material with interior decoration, combined with a composite internal roll cage. It has a realistic appearance and can protect the body shell.
• It is connected to the chassis by a four - point quick - release structure, which is convenient and reliable for disassembly and assembly.

7. Expansion of Special Vehicle Models (EMO XXL 6*6 Brontosaurus)

• With a vehicle length of 1.06 meters and a rear cargo box of 693mm*325mm, it can carry many models such as 1/8 crawler vehicles.
• The third axle adopts an over - bridge type drive shaft structure, which has strong resistance to large torque. The second and third axles can reliably transmit power under extreme cross - axle conditions.

III. Vehicle Styles

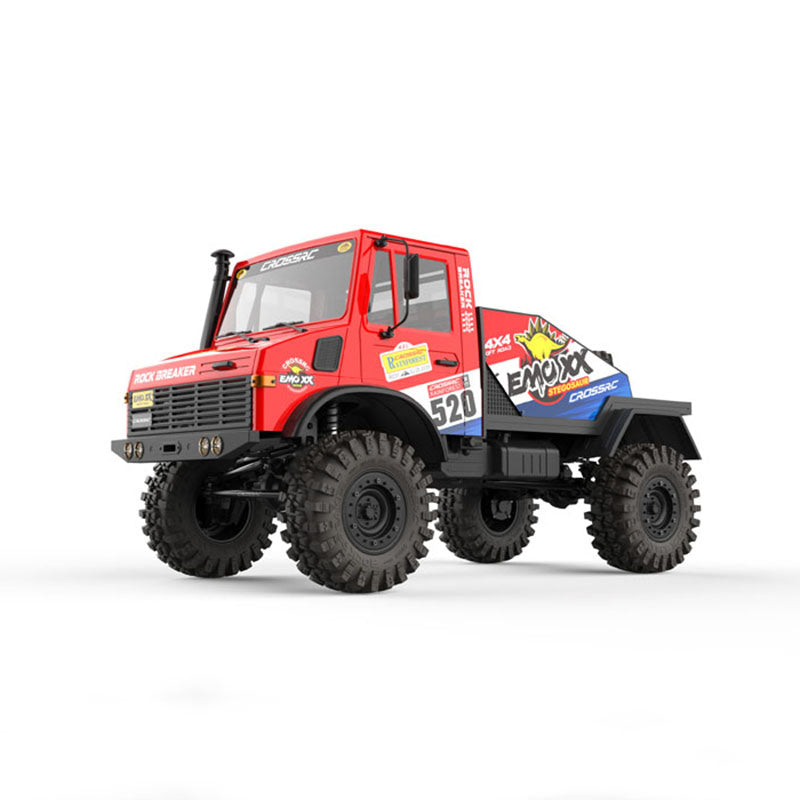

• CROSSRC EMO XX Stegosaurus 4*4 Rally Version

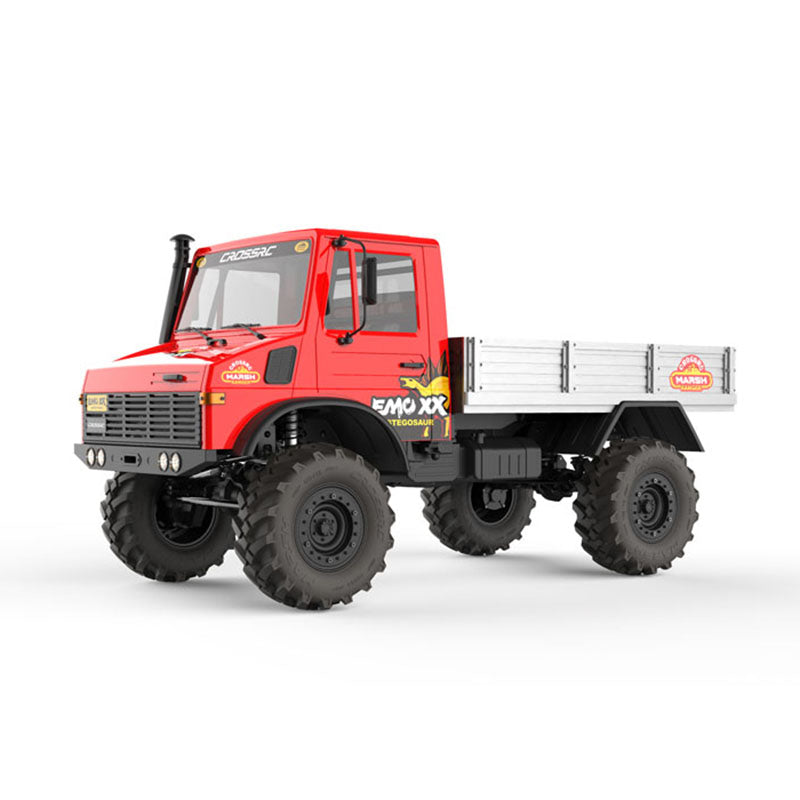

• CROSSRC EMO XX Stegosaurus 4*4 Truck Version

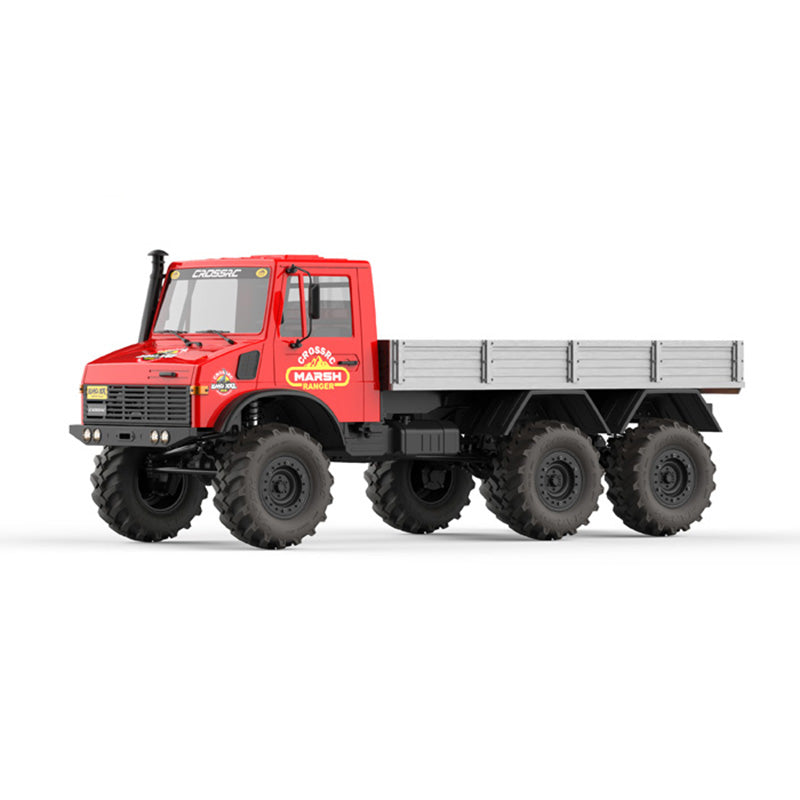

• CROSSRC EMO XXL Brontosaurus 6*6 Truck Version

V. Package list

• 1x RC Car (Charger and Battery not included.)
• 1x Remote Control
• 1x User Manual
