WLTOYS K160 EC-145 RC Helicopter RTF

The WLTOYS K160 EC-145 RC helicopter features a brushless motor and 6-axis gyro, with altitude hold and signal loss protection for safer, more stable flight. Realistic EC-145 design, ideal for experienced users.

I. Basic Information

• Brand/Model: WLTOYS K160 EC-145 RC Helicopter
• Color: Military-style paint (EC-145 Airbus livery)
• Material: High-strength engineering composite
• Control Mode: 2.4GHz
• Gyroscope: 6-Axis Gyro
• Stability Mode: Air pressure altitude hold
• Recommended Age: 14+ (experienced users preferred)

II. Battery and Charging

• Battery: 3.8V 800mAh 20C Lithium Battery
• Charging Time: Approx. 120 minutes
• Flying Time: Approx. 8–10 minutes

III. Motor and Power System

• Main Motor: 1106 11200KV Brushless Motor
• Tail Motor: 8520 Hollow Cup Motor
• Remote Control Distance: Approx. 100 meters
• Remote Power: Requires 6×AA batteries
• Flight Channels: 4CH

IV. Dimensions and Weight

• Rotor Diameter: 251mm
• Fuselage Length: 232mm
• Height: 77mm
• Net Weight: Approx. 72g (without battery)
• Takeoff Weight: Approx. 87.6g (with battery)

V. Design and Build

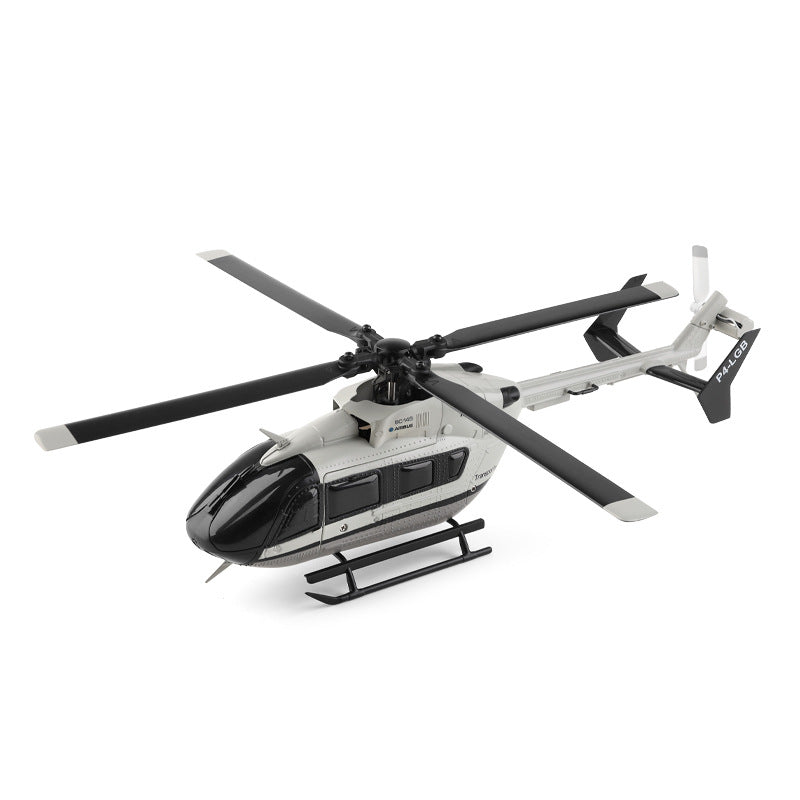

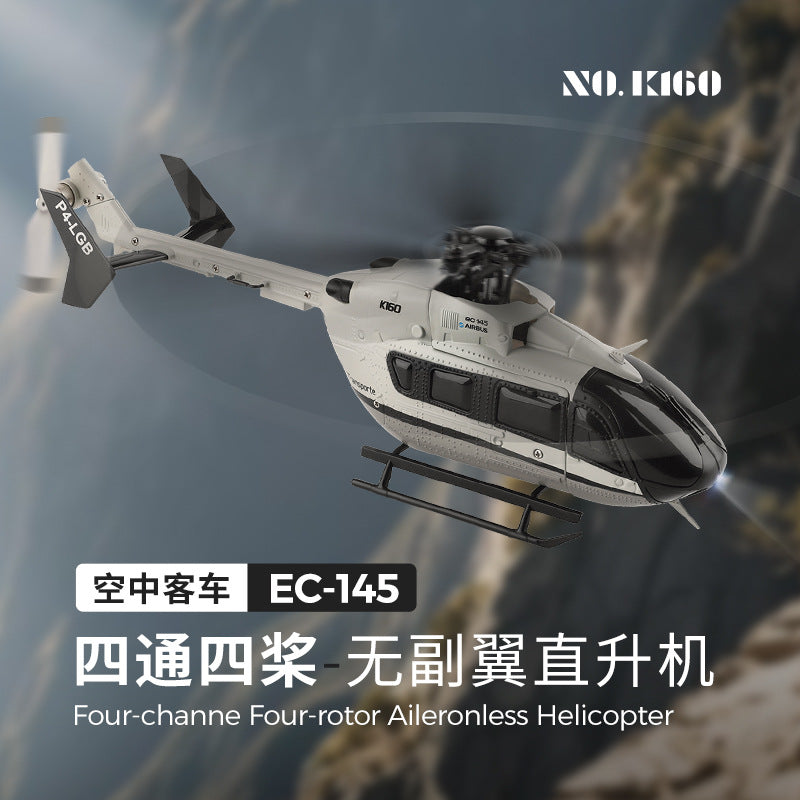

• Scale Appearance: The EC-145 K160 is a highly realistic replica of the Airbus EC-145 helicopter, with detailed military-style looks and a four-blade flybarless rotor system.
• Aerodynamic Rotor Design: Blades are designed based on aerodynamic principles, ensuring strong power output and excellent self-stability during flight.

VI. Remote Control System

• Controller Features:
  • 4-channel controller
  • Switchable left/right-hand throttle
  • Low voltage alert for both aircraft and transmitter
  • One-key takeoff and landing
  • Full movement support: ascend, descend, forward, backward, yaw, and side flight
• Precision Handling: Uses 2.4GHz positioning control for fast response and smooth feel.Independent high-efficiency digital servos ensure fast, precise input and longer durability.

VII. Flight Modes and Stability

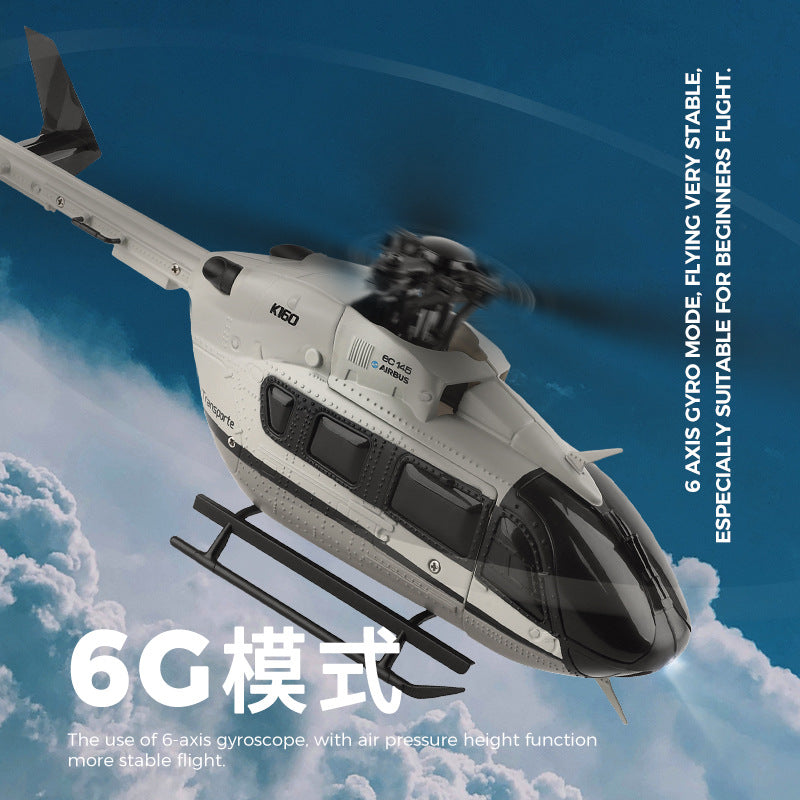

• 6G Stabilization: 6-axis gyro provides superior stability, ideal for controlled and smooth flight.
• Altitude Hold: Air pressure-based altitude hold enhances flight control and steadiness.
• Flight Functions: Supports all basic flight movements plus one-key takeoff/landing for easier control, especially for beginners.

VIII. Battery Protection and Safety Features

• Brushless Power: Equipped with a high-torque 1106 outer rotor brushless motor, paired with a 3.8V 800mAh 20C high-rate lithium battery for powerful and efficient flight.
• Signal Loss Protection:
  • When signal loss or abnormality occurs, the helicopter will hover for 2 seconds and then descend slowly to prevent crashes.
  • If within range, users can quickly reboot the remote and rebind by toggling the throttle stick. (This feature is not recommended for inexperienced users.)

IX. Package Included

1. EC-145 K160 RC Helicopter ×1
2. Remote Controller ×1
3. Instruction Manual ×1
4. USB Charger ×1
5. Spare Rotor Blades ×4
6. Main Gear ×1
7. Lithium Battery ×1
8. Screwdriver ×1
9. Hex Wrench ×1
10. Color Box Packaging ×1
