- Brand: HUANGBO HB TOYS
- Type: HB-TOYS 1/16 RC Car Parts
- Availability: In Stock
Share
I. Overview

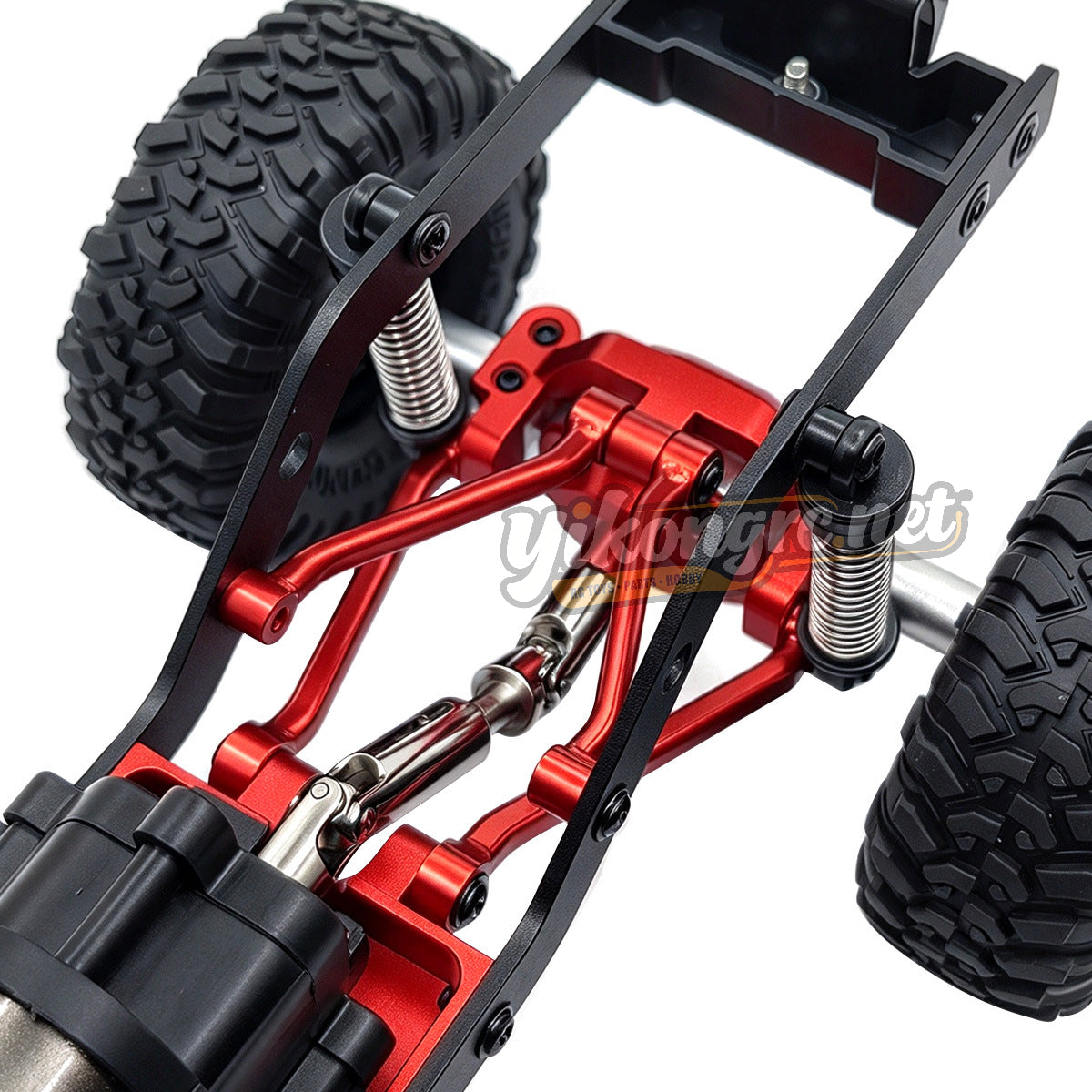

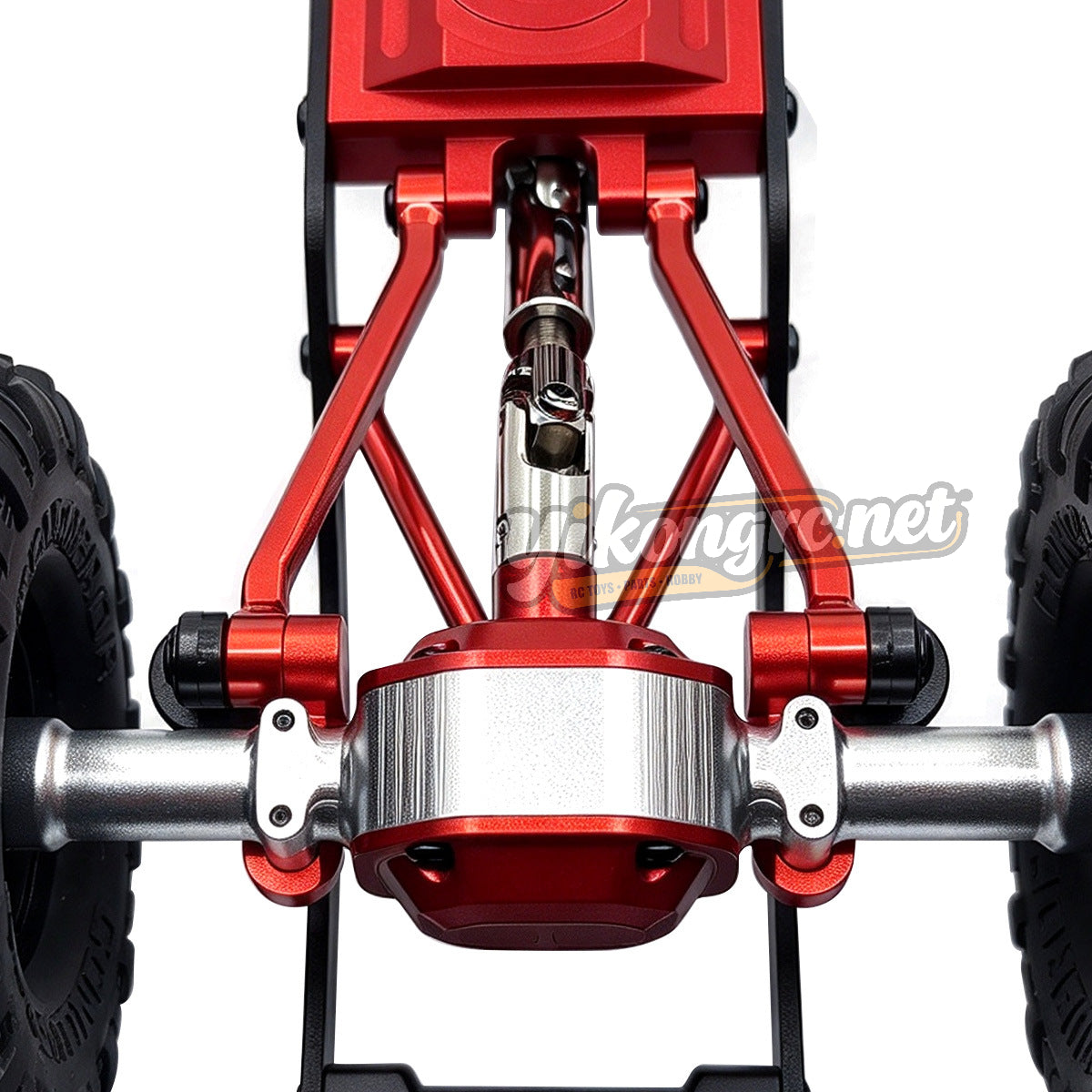

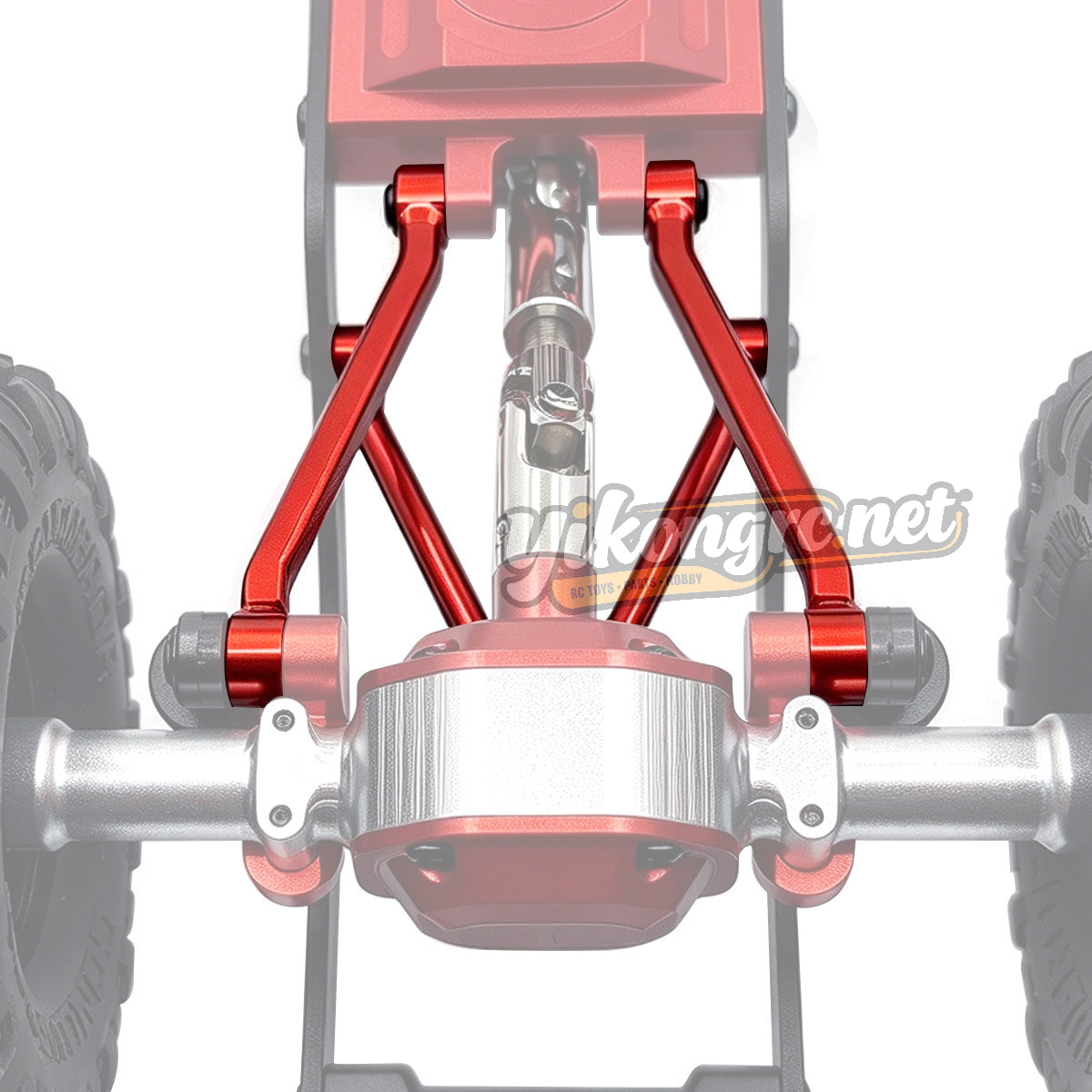

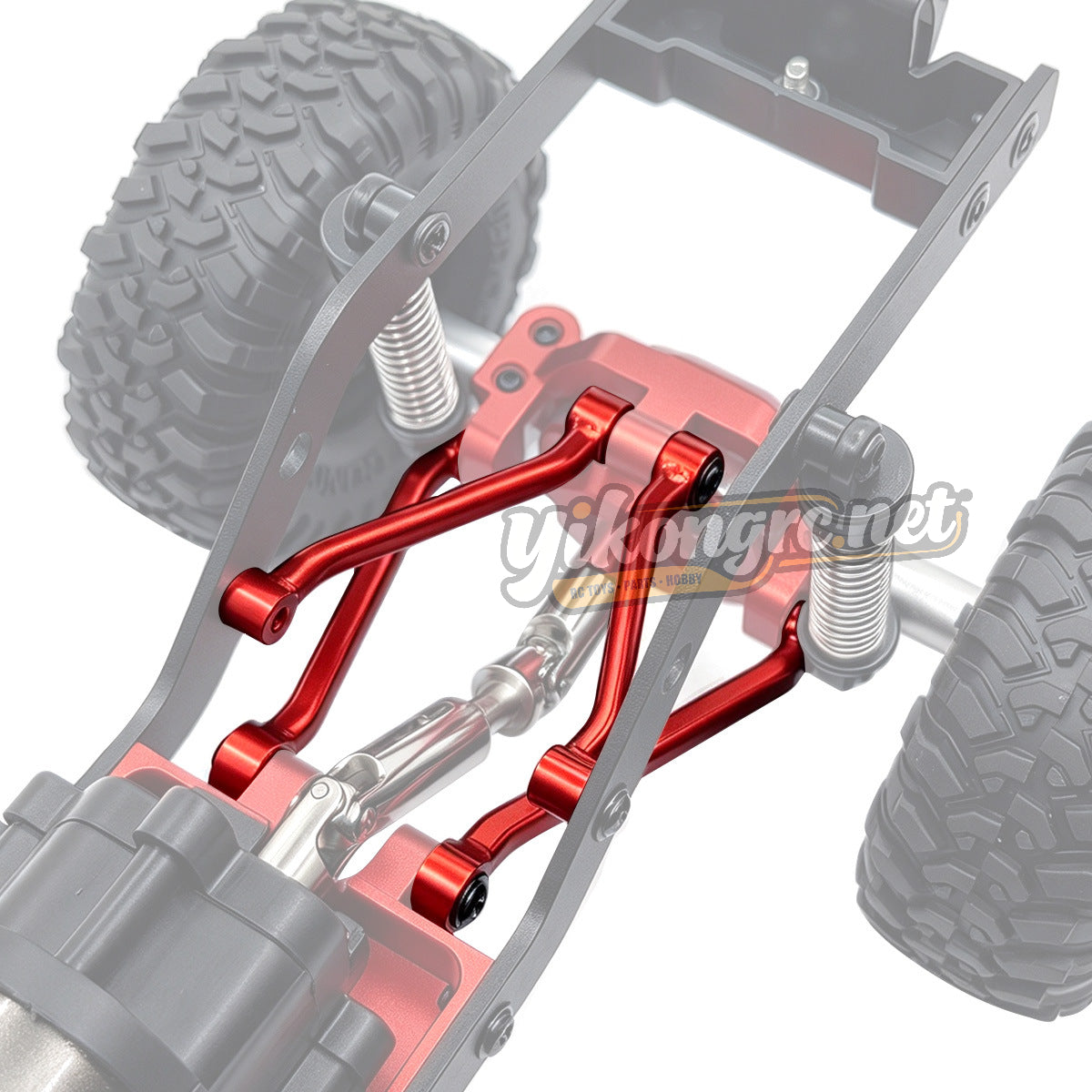

These Chassis Links are upgrade replacement parts designed for the Huangbo 1/16 1601 to 1612 series full-proportional RC cars, used to connect the chassis to the suspension or axles for improved chassis connection rigidity and impact resistance.
II. Specifications
- Brand: HB-TOYS
- Parts number: HBR16-1
- Compatible Model: Huangbo 1/16 1601, 1602, 1603, 1604, 1605, 1606, 1607, 1608, 1609, 1610, 1611, 1612 Full-Proportional RC Cars
- Material: 6061 Aluminum
- Finish: Anodized
- Color: Red / Black / Gold / Titanium (optional)
- Weight: 27.5g (including screws and packaging)
-

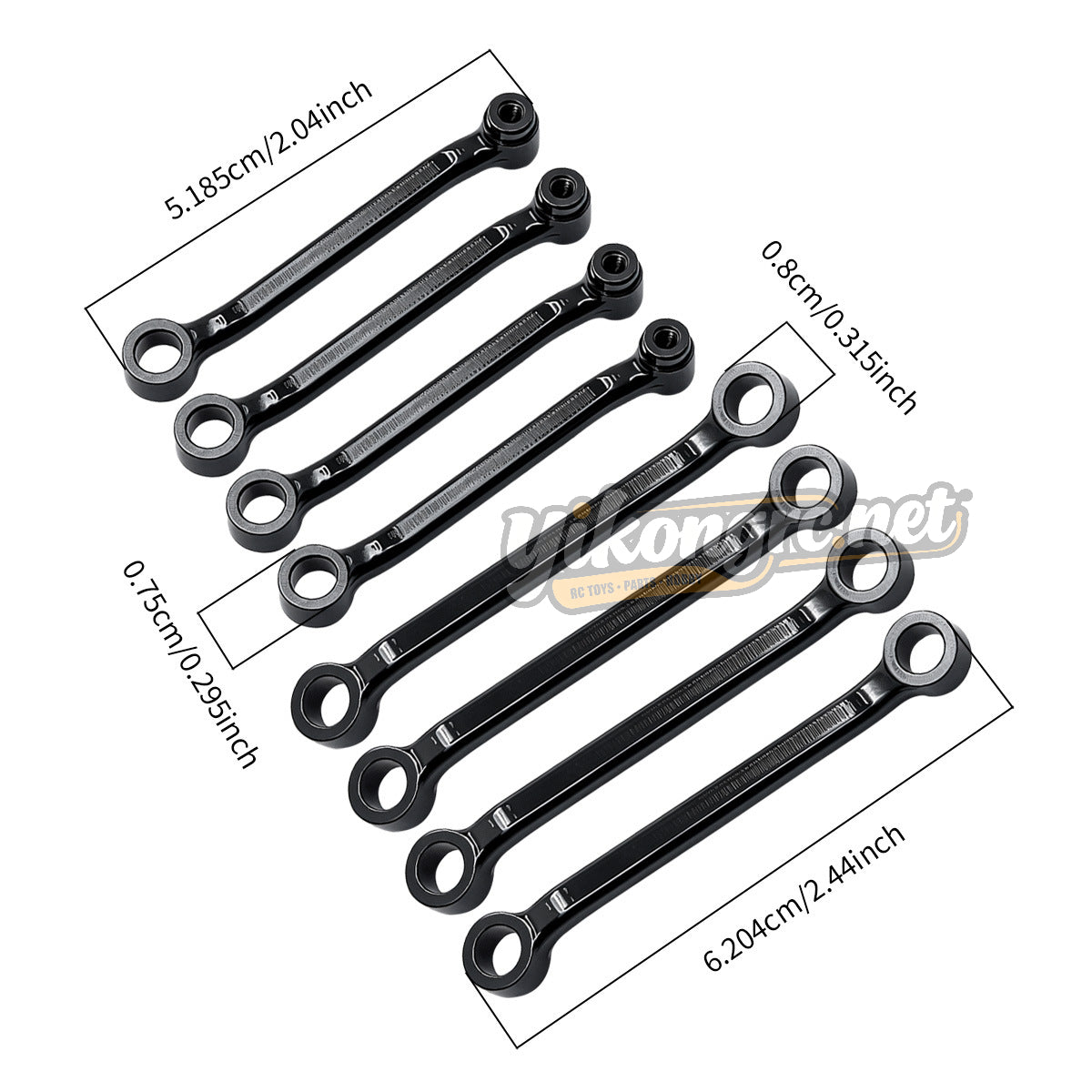

Dimensions:
- Long (4pcs): 62.04mm × 8mm × 16.1mm
- Short (4pcs): 51.85mm × 7.5mm × 19.44mm
- Quantity: 8pcs per set (4 long + 4 short)
Note: All metal upgrade screws must be secured with thread lock. Removable thread lock is recommended.
III. Package Included

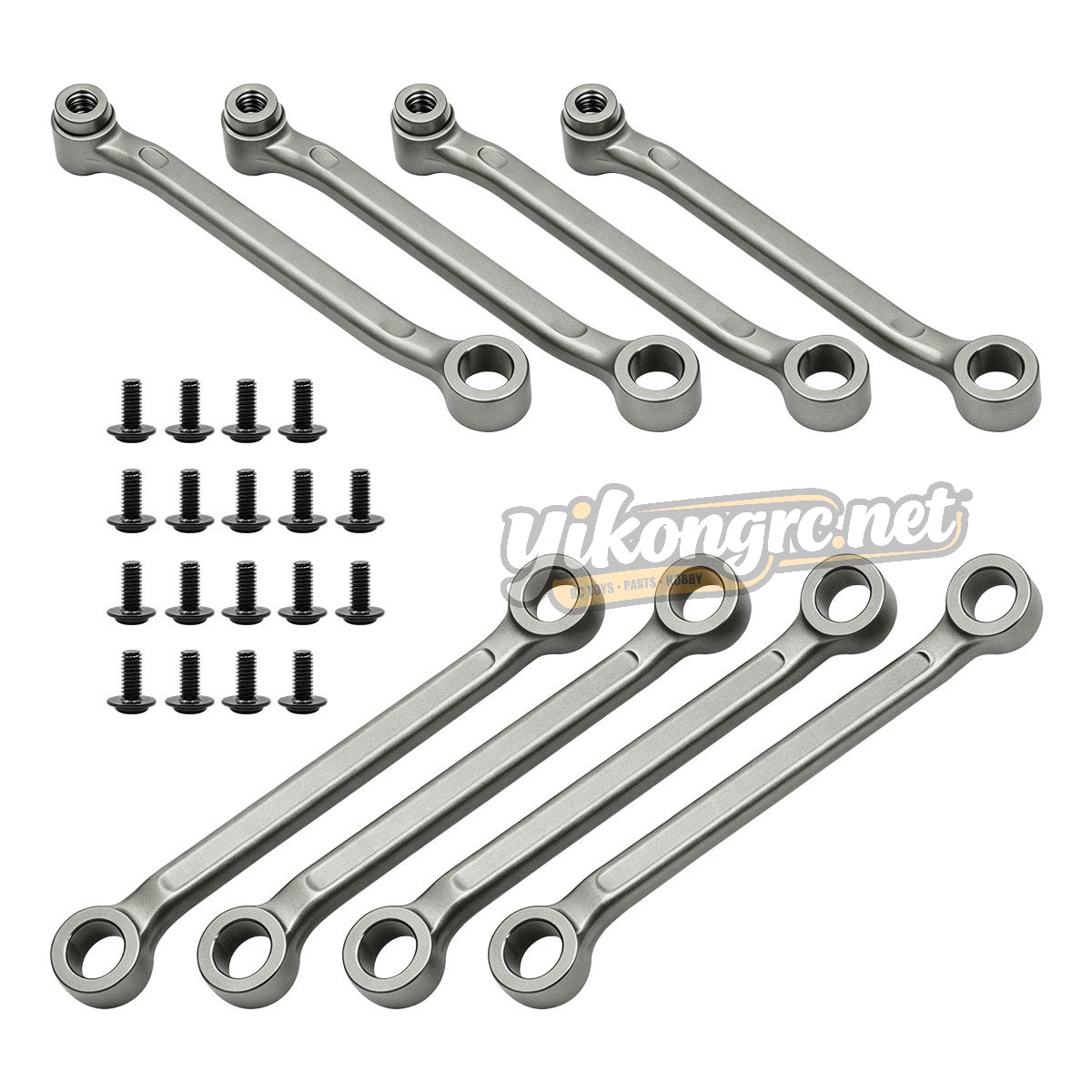

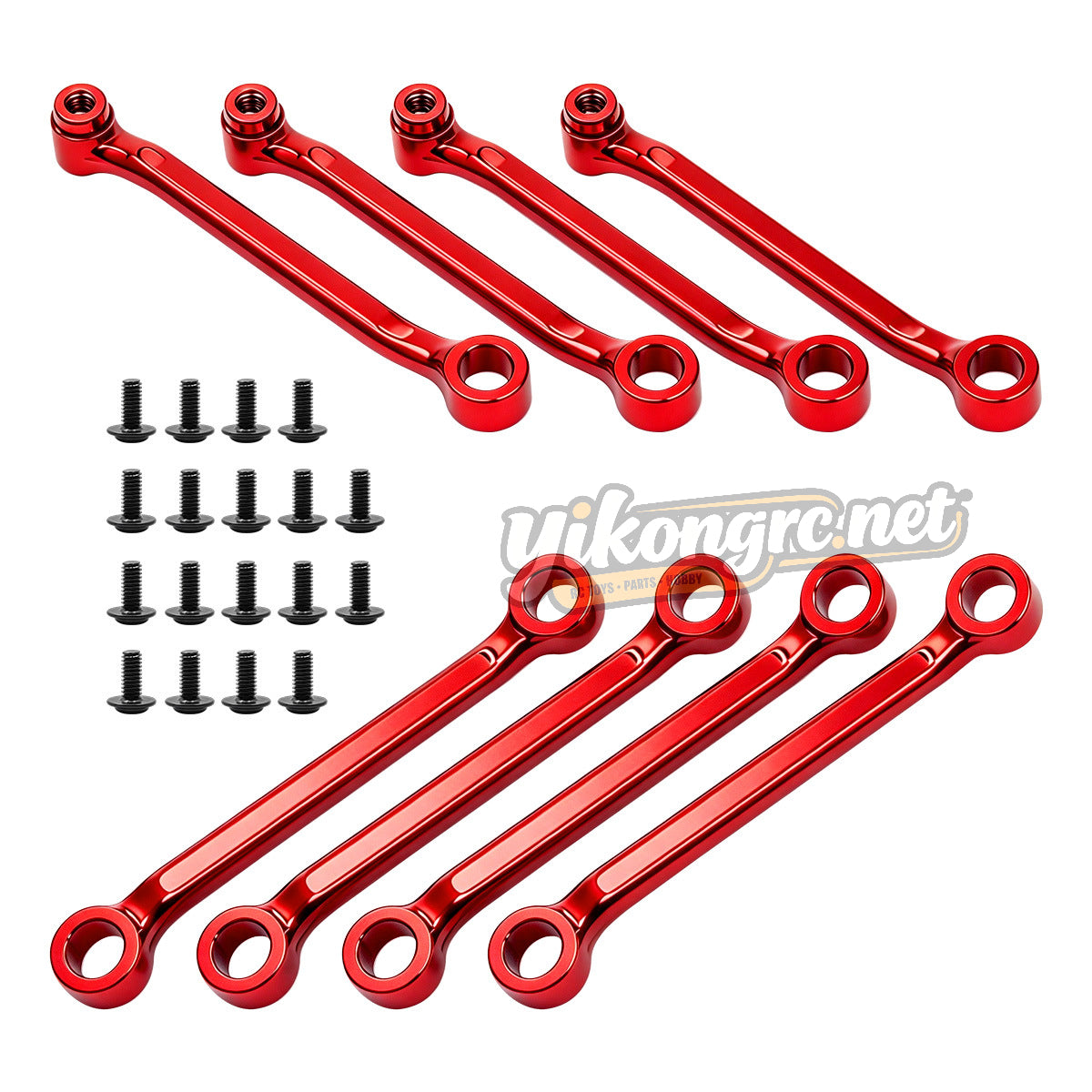

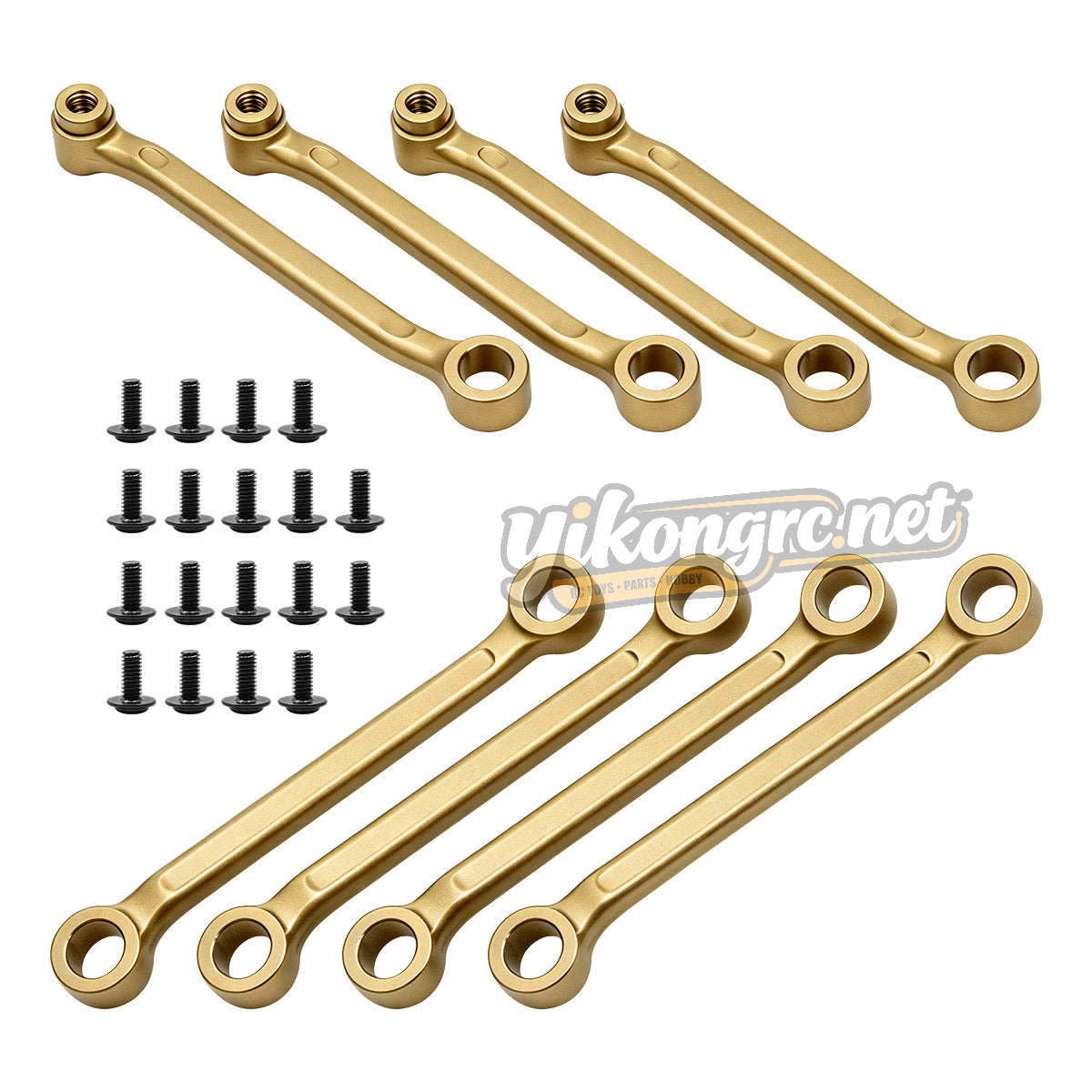

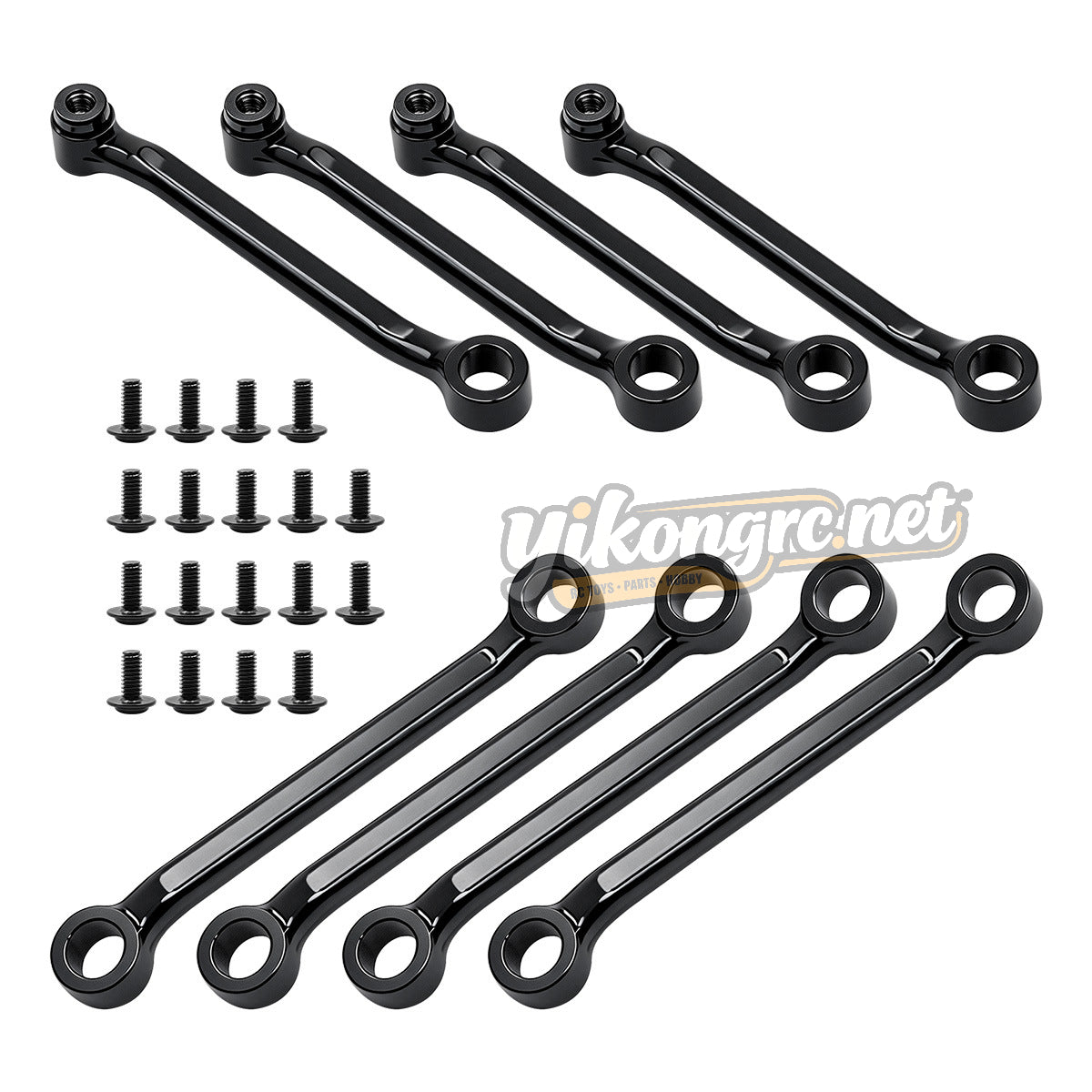

- 4 pcs × HB-TOYS Long Chassis Links
- 4 pcs × HB-TOYS Short Chassis Links
- 1 set × Included screws
IV. FAQ
1. How do I tell the 4 long and 4 short Chassis Links apart on my HB-TOYS R1601 RC Car?
Identify them by size. The long Chassis Links on your HB-TOYS R1601 RC Car measure 62.04mm × 8mm × 16.1mm, and the short links measure 51.85mm × 7.5mm × 19.44mm. Install them according to the original link positions — long links for farther connection points and short links for closer ones.
2. Will the Chassis Links affect suspension travel on my HB-TOYS R1601 RC Car?
Yes. The Chassis Links on your HB-TOYS R1601 RC Car determine the connection angles between the suspension and axles, and mounting position deviation or incorrect link length can limit suspension travel. After installation, check that the suspension moves smoothly and adjust the link positions if necessary to ensure proper tire contact and axle positioning.
3. What happens if the screws on the Chassis Links loosen on my HB-TOYS R1601 RC Car?
It causes loose connections and suspension positioning offset. If the screws on the Chassis Links of your HB-TOYS R1601 RC Car loosen, gaps develop between the links and the chassis or axles, causing noise and wobble during operation and potentially detachment in severe cases. Retighten the screws in a diagonal pattern when looseness is found, and reapply removable thread lock.
V. About the HB Toys R1601 / R1602 / R1603 1/16 RC Car
HB Toys R1601 / R1602 / R1603 are 1/16 scale 4WD off-road RC cars equipped with 280 brushed motors. They feature metal chassis beams, independent suspension, and LED lighting. Available in grey, blue, and yellow, these models are ideal for entry-level users for everyday fun and off-road terrain driving.
