ZD Racing DBX-07 1/7 4WD Off-Road Desert RC Car

ZD Racing DBX-07 1/7 4WD Off-Road Desert RC Car

The DBX 07 is a brand-new 1/7-scale realistic high-performance four-wheel-drive desert off-road vehicle developed by the ZDracing team, based on the prototype vehicle from the globally renowned Ultra4 extreme off-road racing series. It features realistic design, lightweight construction, and competition-grade materials, making the DBX-07 a powerful and robust machine!

I. Basic Information

• Brand: ZD Racing
• Model: DBX-07
• Scale: 1/7
• Color: Blue and Grey
• Designed Speed: 80km/h

II. Power System

The DBX-07 is available in two versions: RTR and bare chassis (KIT):

• The RTR version is powered by a SURPASS 4282 2000KV brushless motor, a 150A brushless ESC, and two 3S 5000mAh lithium batteries connected in series, enabling the vehicle to easily exceed 80 km/h in its stock configuration. The steering system uses a 25KG servo, and the handbrake uses a 15KG servo. The RTR model features an aluminum alloy center differential with dual disc brakes and a mechanical handbrake. It comes standard with simulated headlights, roof lights, and taillights. The included 2.4G four-channel remote control allows independent switching between two mechanical brake modes and 15 headlight modes, delivering an exhilarating driving experience.


• The KIT version is ideal for professional RC enthusiasts, offering players the freedom to customize the power system for endless possibilities.

Transmitter (Included in RTR version only):

• Frequency: 2.4G
• Channels: 4CH
• Remote Distance: >100m
• Required Battery: 4 x 1.5V AA batteries (not included)

Battery (Included in RTR version only):

• Car Battery: 2 x (11.1V 5000mAh) Lipo batteries (included)
• Battery Charging Time: Approximately 2 hours
• Battery Playing Time: Approximately 20 minutes

III. Other Features

• Shock Absorber: Ф165*63mm
• Reduction Gear Ratio: 15:1

IV. Car Dimensions

• Car Size: 680 x 380 x 225mm
• Wheelbase: 419mm
• Chassis Height: 52mm
• Wheel Size: Ф165*63mm

V. Features

1. The DBX-07 is a 1/7 scale, simulated, violent 4WD desert off-road vehicle newly created by the ZD Racing professional team. It features a simulated design, lightweight structure, competition-grade materials, and powerful performance.

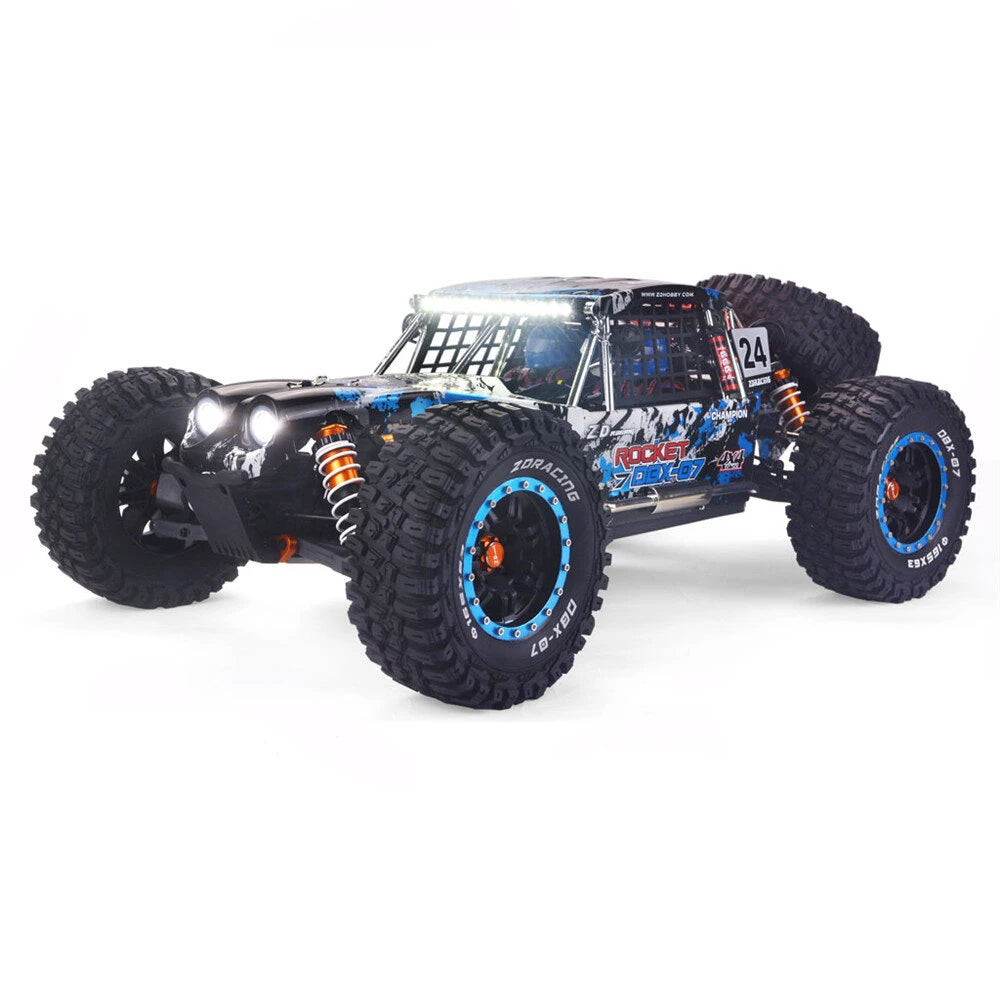

2. Equipped with simulated headlights, roof spotlights, and taillights. The headlights offer 15 lighting modes, making it visually impressive.
3. Fully plated, cage-type, super-tough roll cage, providing body protection in all directions while being more realistic. It also features extreme off-road racing style cockpit interiors and various appearance simulation details.
4. Aggressive all-terrain tires measuring Ф165*63, with electroplated titanium gray and blue/black color options. The newly designed tire pattern provides superb grip.
5. The factory comes standard with an adjustable head-up kit, making modular installation quick and easy.
6. Powerful transmission system: The DBX-07 features larger modulus and size differential gears, a full-metal center differential, CNC chromium-molybdenum steel gears, imported alloy steel connectors, thickened drive shafts, and large-capacity shock absorbers. The gearbox includes pre-embedded metal bearing seats, which strengthens the structure and prevents gear damage caused by plastic wear and deformation, ensuring smooth performance.
7. Chassis: CNC precision-machined Aluminum Alloy T6061
8. Shock Absorbers: Fully metal, oil-pressure adjustable
9. Car Shell: Fully electroplated cage-type super-tough roll cage with PVC shell

VI. Package Contents

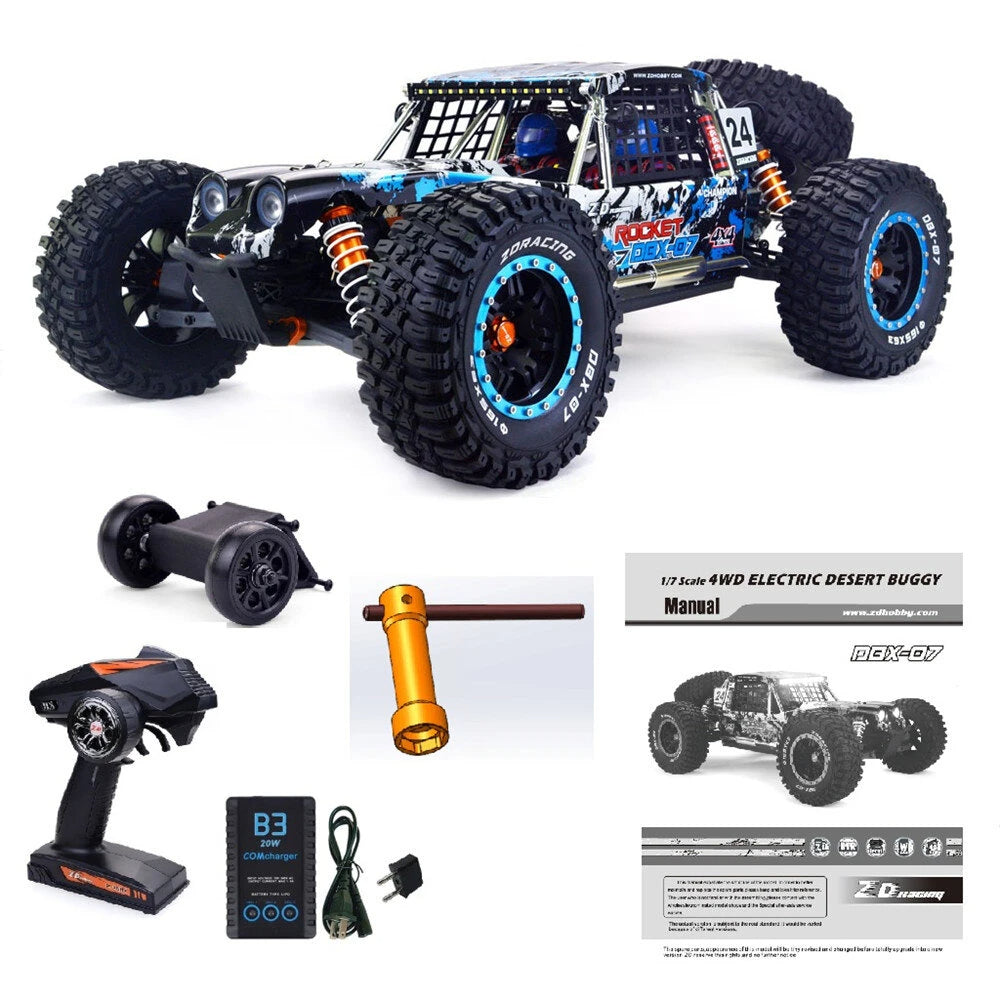

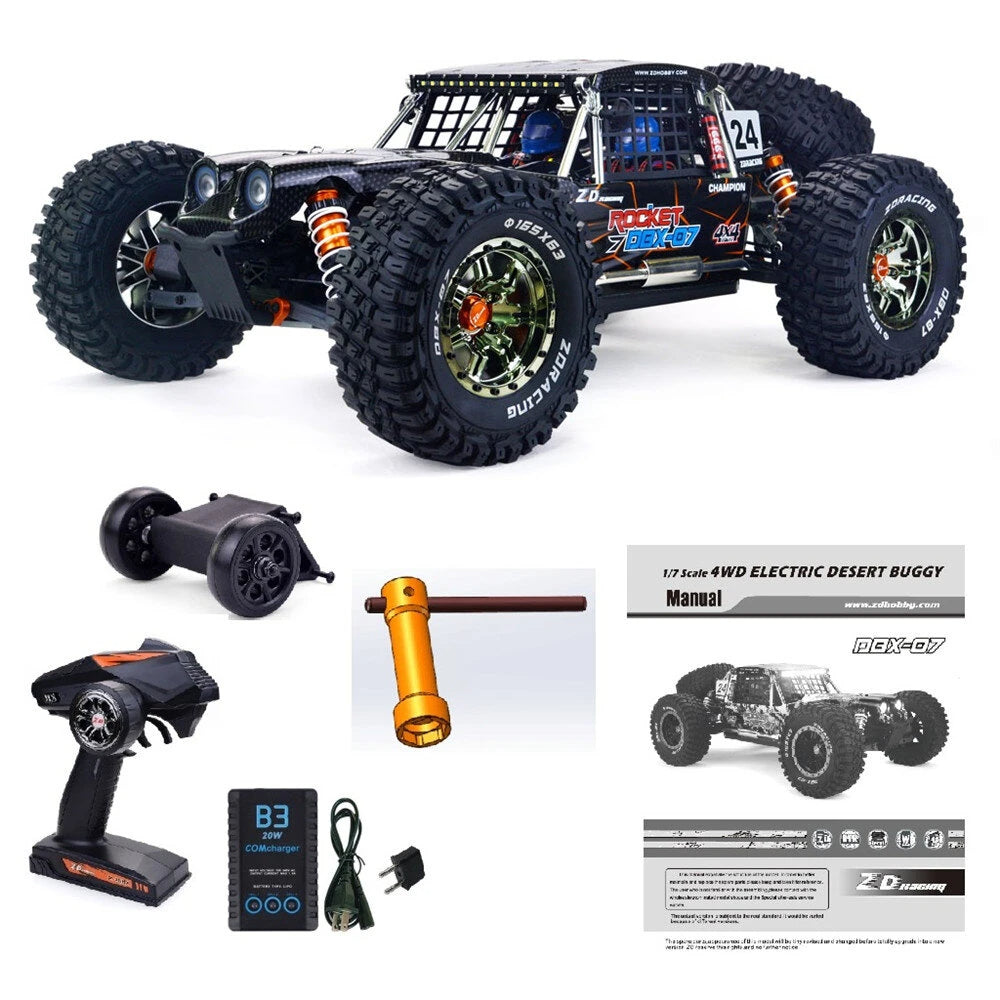

RTR Version (Choose between RTR or KIT version):

• 1 x RC Car
• 1 x Remote Controller
• 1 x Battery (Built-in)
• 1 x B3 Balance Charger + Adapter (EU or US compatible)
• 1 x Manual
• 1 x Tire Wrench
• 1 x Wheelie Bar

KIT Version (Choose between RTR or KIT version):

• 1 x RC Car Frame (does not include motor, ESC, servo, transmitter, battery, or charger)
• 1 x Manual
• 1 x Accessories Bag
• 1 x Tire Wrench
