ZD Racing Rocket S16 1/16 4WD Touring On-road RC Car
The ZD Racing S16 is a 1/16 scale 4WD racing RC car available in both brushed and brushless versions, with a top speed of 45 km/h. It features a high-strength CNC aluminum chassis, metal gear servo, and high-performance battery, offering excellent speed and control for both indoor and on-track drifting and racing.
I. Product Overview
- Brand: ZD RACING
- Model: ROCKET S16
- Type: 1/16 Scale 4WD Touring Car
- Drive System: Full-time 4WD

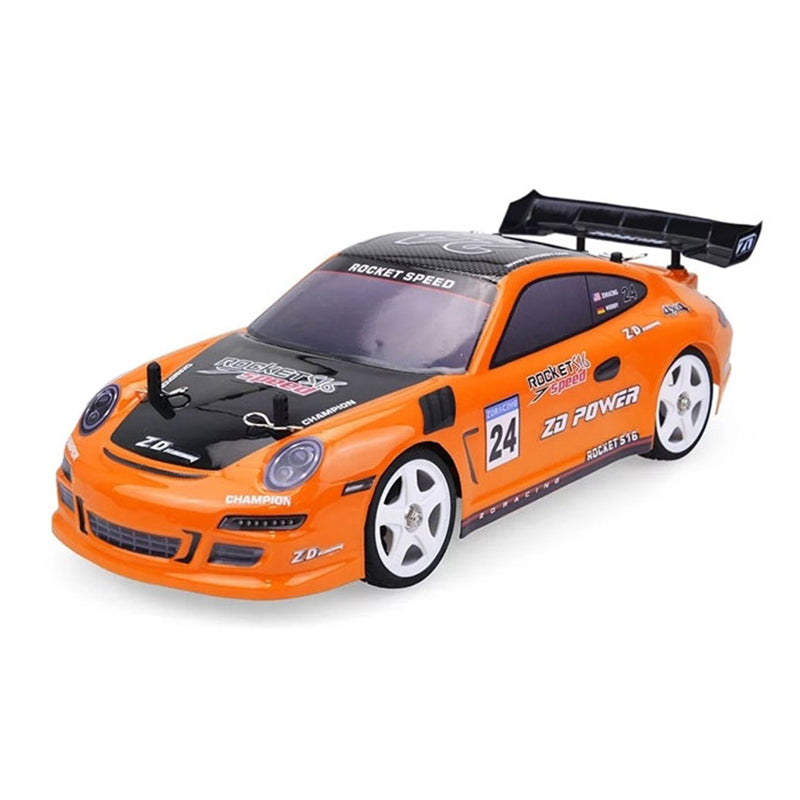

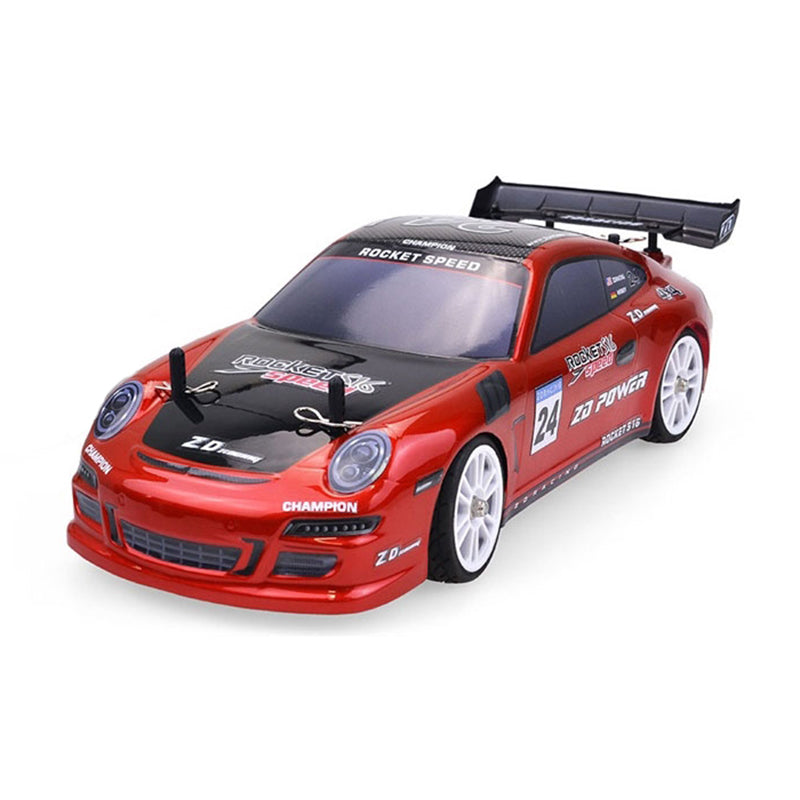

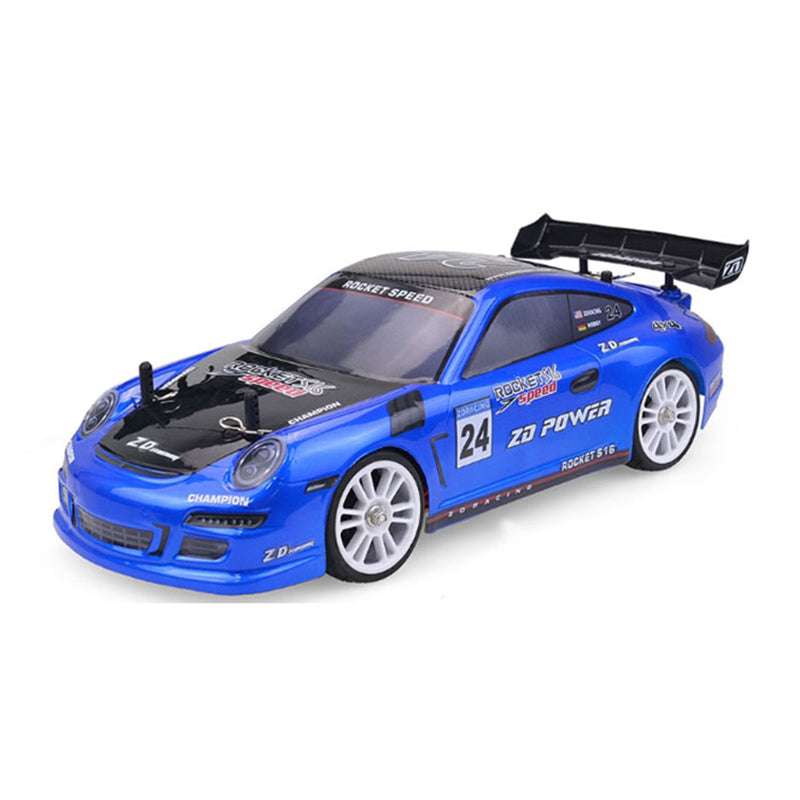

- Available colors: Red, Yellow, Blue
- Top Speed: 45 km/h
-
Versions Available:
- Brushed Version
- Brushless Version
II. Dimensions & Structure
- Product Size: 320 × 134 × 98 mm
- Wheelbase: 175 mm
- Ground Clearance: 7 mm
- Gear Ratio: 6.8:1
-
Net Weight:
- Brushed: 0.59 kg
- Brushless: 0.55 kg
- Body Material: Flexible PVC
- Chassis Material: CNC aluminum alloy, hollow design
-
Chassis Color:
- Brushed: Titanium Grey CNC Chassis
- Brushless: Orange CNC Chassis
- Upper Deck & Shock Towers: CNC lightweight aluminum
III. Electronics & Power System
Version Comparison (ZD Racing S16 Brushed & Brushless)
- Motor: RC380 Brushed Motor | 2435 Brushless Motor (3300KV)
- ESC: Built-in 160A brushed ESC (20A continuous) | Built-in 30A brushless ESC
- Battery: 7.2V 1200mAh 2A/3 NiMH | 7.4V 1500mAh Li-Po
- Servo: 2.2kg Metal Gear Analog Servo
- Transmitter/Receiver: 2.4GHz full proportional, 2-in-1 unit
- Runtime: Approx. 20 minutes
- Charging Time: Around 2.5 hours | Around 2 hours
The integrated ESC+receiver module reduces space usage while maintaining upgrade flexibility with standard 3-wire servos.
IV. Remote Control System
- Frequency: 2.4GHz
- Protocol: 2H1
- Control Range: Up to 100 meters
- Transmitter Power: Requires 2 × AA batteries (not included)
V. Exterior Features
- Body Shell: High-fidelity, full-scale PVC replica
- Lighting: Factory-installed LED ambient skirt lights
- Color Options: 3 styles available (Red, Yellow, Blue)
- Front Bumper: Hollowed sponge design for shock absorption
- Design Notes:
-
- Lightweight chassis with high-gloss chamfered finish
- Reinforced second floor plate and butterfly mount
- Drift-ready styling with race-grade aerodynamics
VI. Drivetrain & Performance
- Driveshafts: Hardened steel CVD
- Transmission: High-strength metal gears
- Bearings: High-speed precision bearings throughout
- Tires: Race-grade for indoor/track use with excellent grip
- Handling: Designed for high-speed cornering and drifting
VII. Package Contents
- ZD Racing S16 Car ×1
- 2.4GHz Transmitter ×1
- Instruction Manual ×1
- Charger ×1 (Charger Plug Type: EU/US available)
